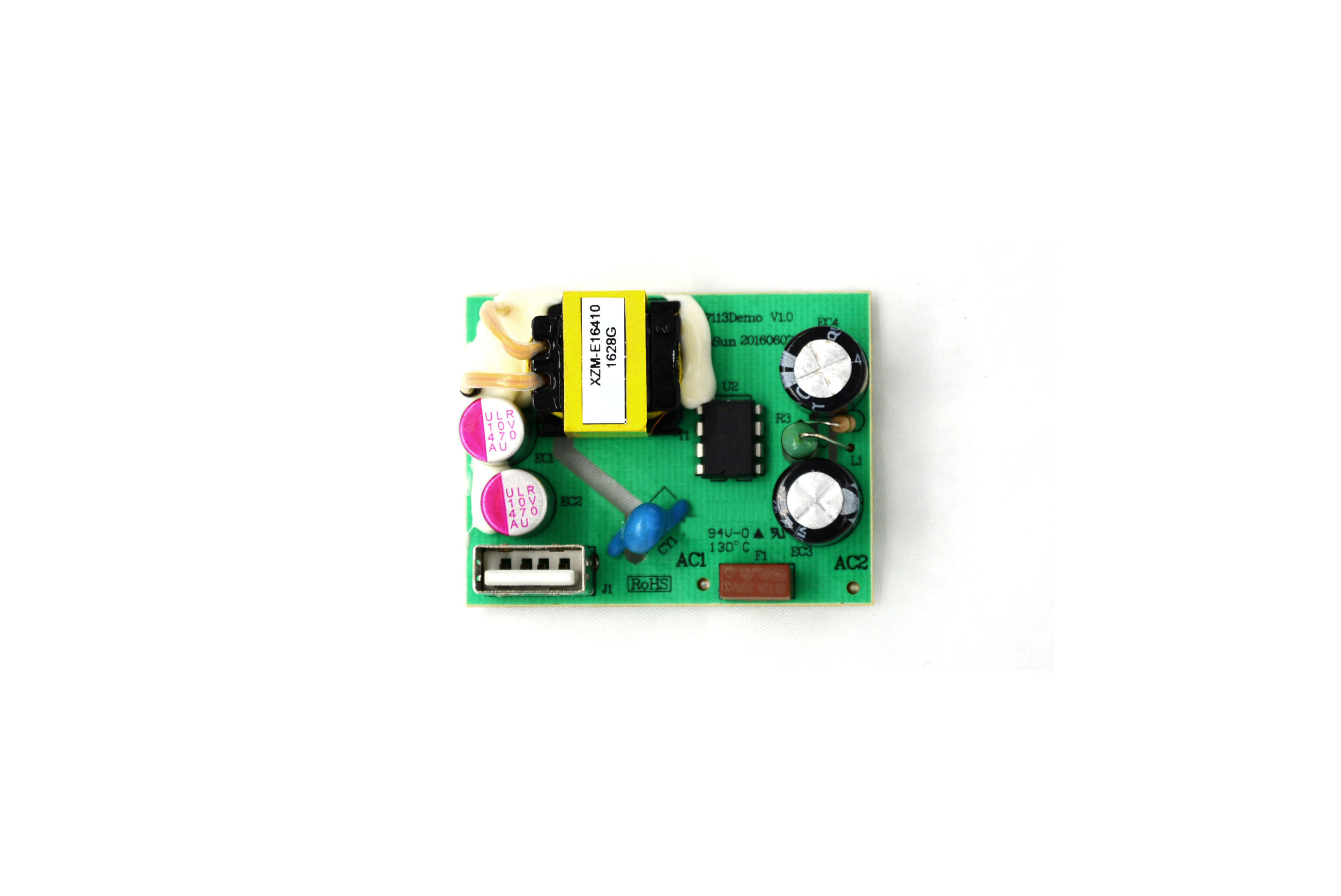

Product features: adopt constant voltage and constant current primary side control mode, with output short-circuit protection and output overvoltage protection; The output interface adopts USB protocol chip to intelligently identify various load devices.
Detail
Function description
Single USB output, full load current 2.4a; Compatible with apple 2.4a/1.0a, Samsung 2.1a and DCP 1A charging modes.
technical parameter
Input voltage: 100VAC-240VAC
Output voltage: 5VDC ± 5%
Full load current: 2.4a ± 5%
Overcurrent protection point: 2.7A
Standby power consumption < 100MW @ 230V 50Hz 25 ℃
