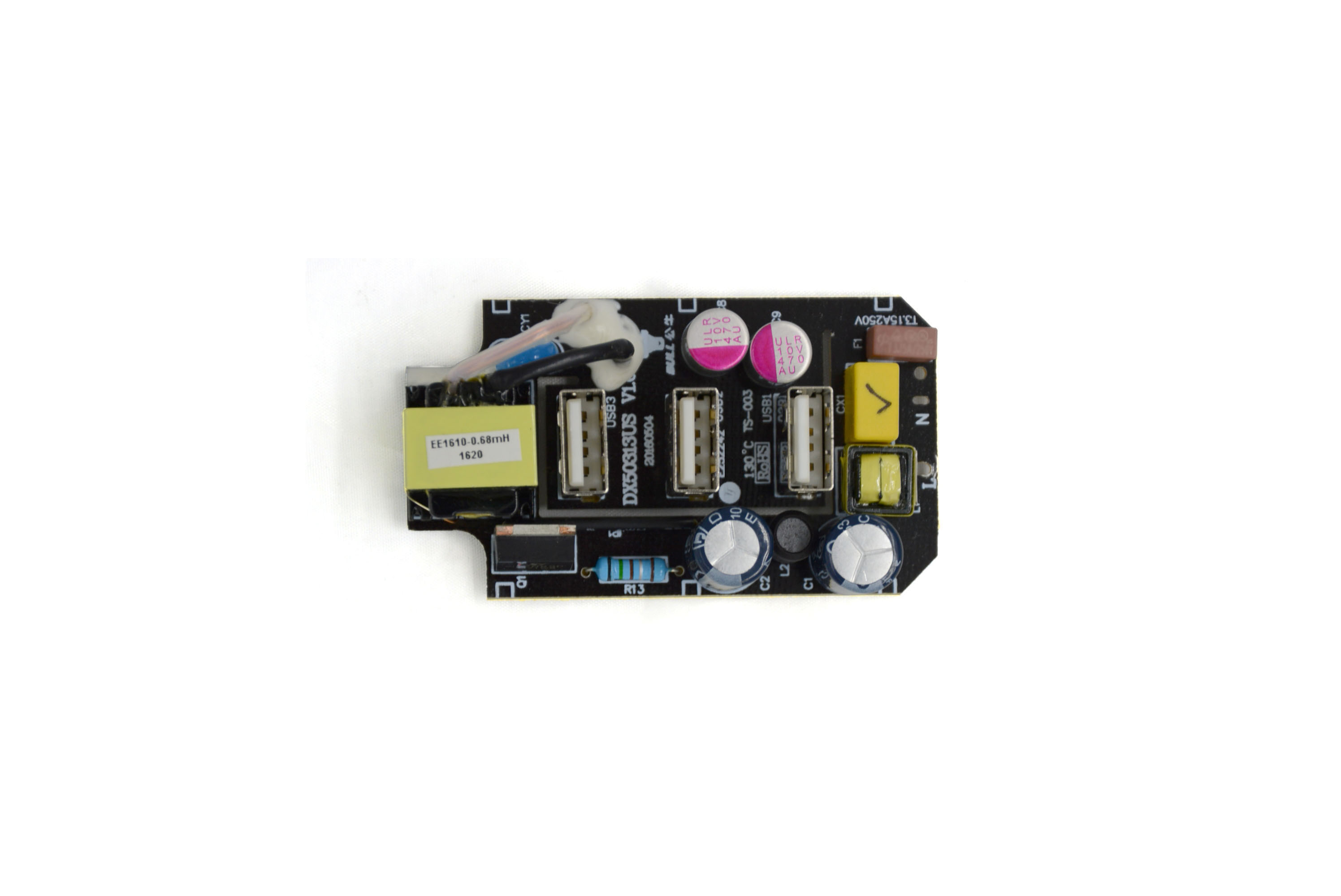

Three way USB power supply
Product features: it adopts constant voltage and constant current primary side control mode, with output short-circuit protection, output overvoltage protection, primary open-loop protection and over temperature protection; The output interface adopts USB protocol chip to intelligently identify various load devices.
Detail
Function Description:
3-way USB output, full load current 3.1a; The maximum single channel current is 2.4a, compatible with apple 2.4a/1.0a, Samsung 2.1a and DCP 1A charging modes.
Technical parameters:
Input voltage: 100VAC-240VAC
Output voltage: 5VDC ± 5%
Full load current: 3.1a ± 5%
Overcurrent protection point: 3.3a
Standby power consumption ＜ 100MW @ 230V 50Hz 25 ℃
Plate end efficiency: meet eps2 0 level6
Line voltage adjustment rate: < 2%
Load adjustment rate: < 5%
Spike and ripple: < ± 150mV
Maintenance time: > 10ms @ 100vac 50Hz full load
Startup delay time: < 2S @ 100vac 50Hz full load
Dimensions: 68.5 mm x 39.0mm x 20.0mm (L w h)
