Converter 2
Product features: 1. Lightning protection: protection mode L-N; Nominal discharge current in: 3KA; Maximum discharge current Imax: 6ka; 2. Electronic overload: when overload is detected, the light flashes and the buzzer buzzes intermittently, and the output is disconnected after 15 seconds; 3. Over current protection: and short circuit protection. When the output is short circuited, the built-in high reliable fuse is blown to protect the output safety; 4. Five channel output: press the key to output at the corresponding port, and press it twice to close the output; Five way independent control; 5. 1-position main switch: touch the main switch gently for on-off function; For overload duration, press to turn off the output.

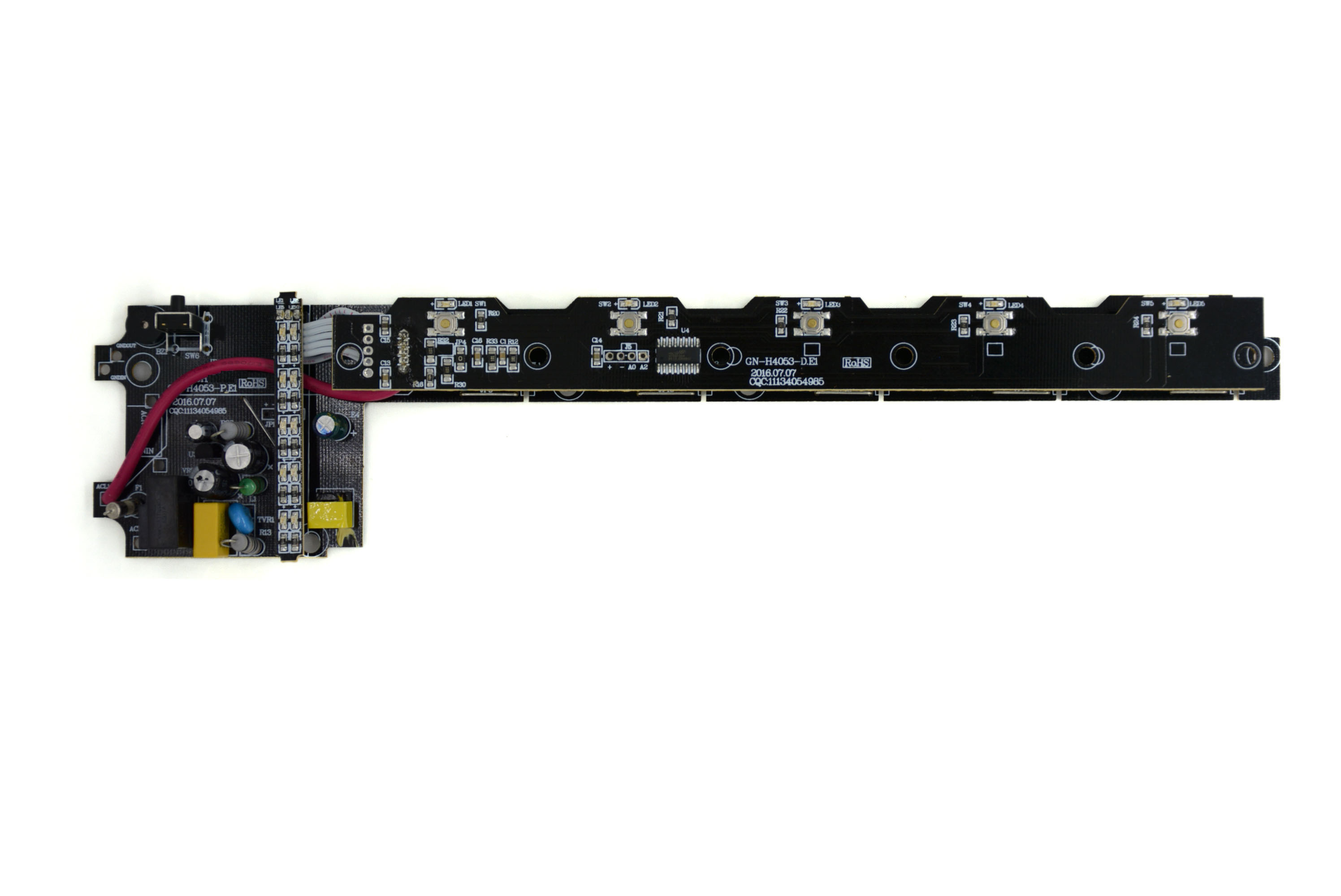

Detail
Function Description:
With surge and overload protection function, the blue light is always on during normal operation. When lightning protection fails, the blue light is turned off and the red light flashes; When overload is detected, the indicator light changes to red light, turns off, the blue light flashes and acts with the buzzer,
Turn off the LED, buzzer and output after 15 seconds. During the action of 15 seconds, the switch can turn off the LED, buzzer and output at any time.
Technical parameters:
1. Rated working voltage / frequency: 220V AC, frequency: 50Hz;
2. Standby power consumption: ＜ 1W;
3. Working voltage range: 180V ~ 265vac;
4. Working environment temperature: - 10 ℃ ~ 40 ℃;
5. Maximum output of single output port: 10A / 2500W;
6. Mechanical life of light touch switch ≥ 50000 times, and mechanical life of relay ≥ 50000 times;
7. Service life: ≥ 2 years;
8. Certification requirements: CCC;
9. Executive standard: gb15092 1-2010。
