Function Description:

Display: blue LED display

Key: inching key control

Sound: None

Power supply: switching power supply scheme

Other technologies: standby power consumption < 0.5W

Technical parameters:

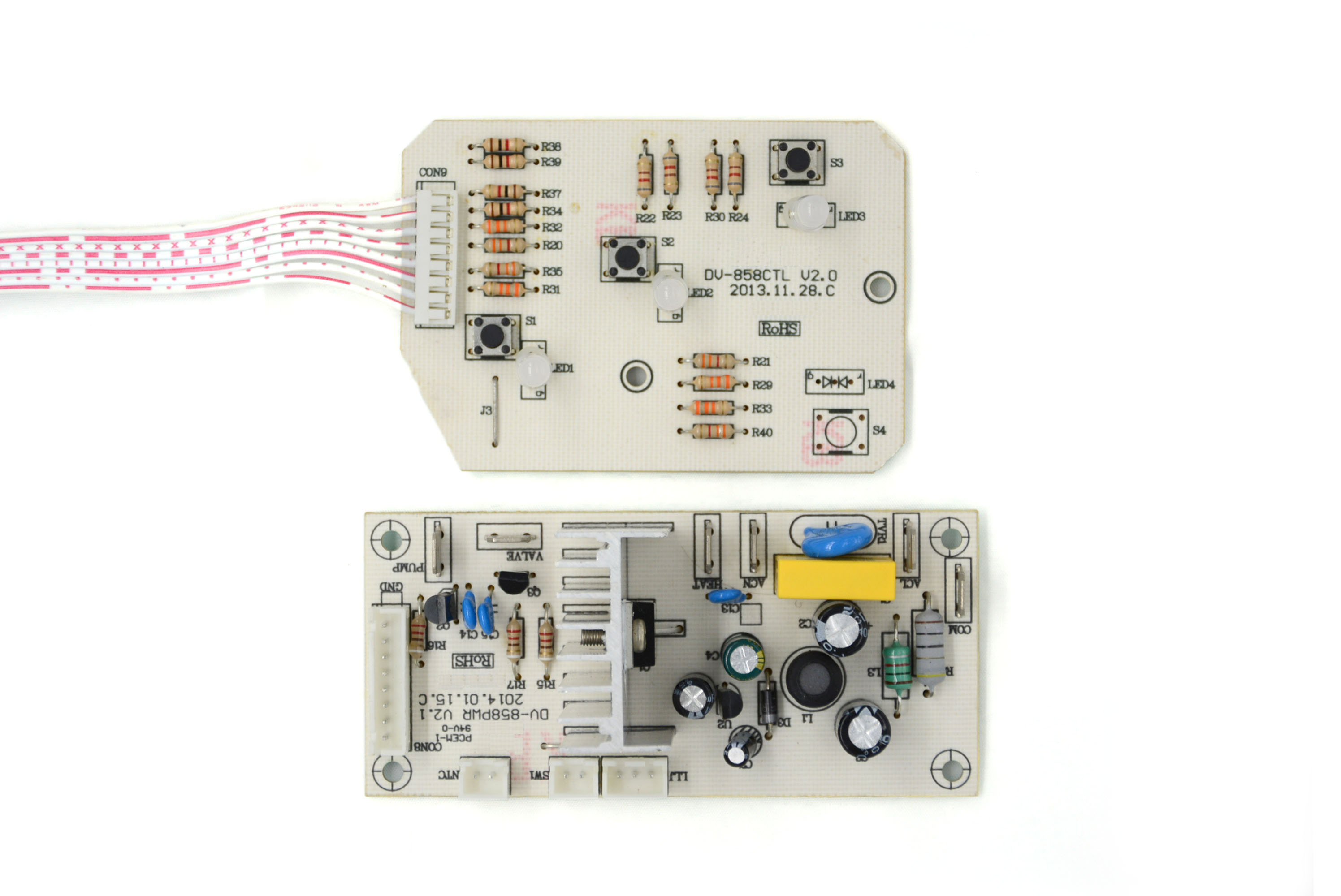

Power supply board:

1. Input: ac100v-50 / 60Hz; AC120V 60Hz

2. Output: thyristor controlled load power 800 ~ 1200W

AC pump pumping, DC air pump 12V

Display panel:

1. Input: 4 keys and 5 lights, showing blue light

Certification requirements:

UL,JQA;

Product introduction:

Instant capsule coffee machine

The quantity of coffee cup is 120 ~ 300cc, and the coffee temperature is 77 ~ 84 ℃

The control board automatically adjusts the machine power according to the water outlet temperature

It can automatically identify the pump water volume and inlet water temperature to stabilize the outlet water temperature

Blow dry the capsule after cooking, which is conducive to sanitary cleaning

In addition, when the machine needs to be used, it does not need to wait. It can be used after plugging in and starting up, which will not produce standby waste power consumption, reduce the use cost and save the user's time
