Electric iron 2

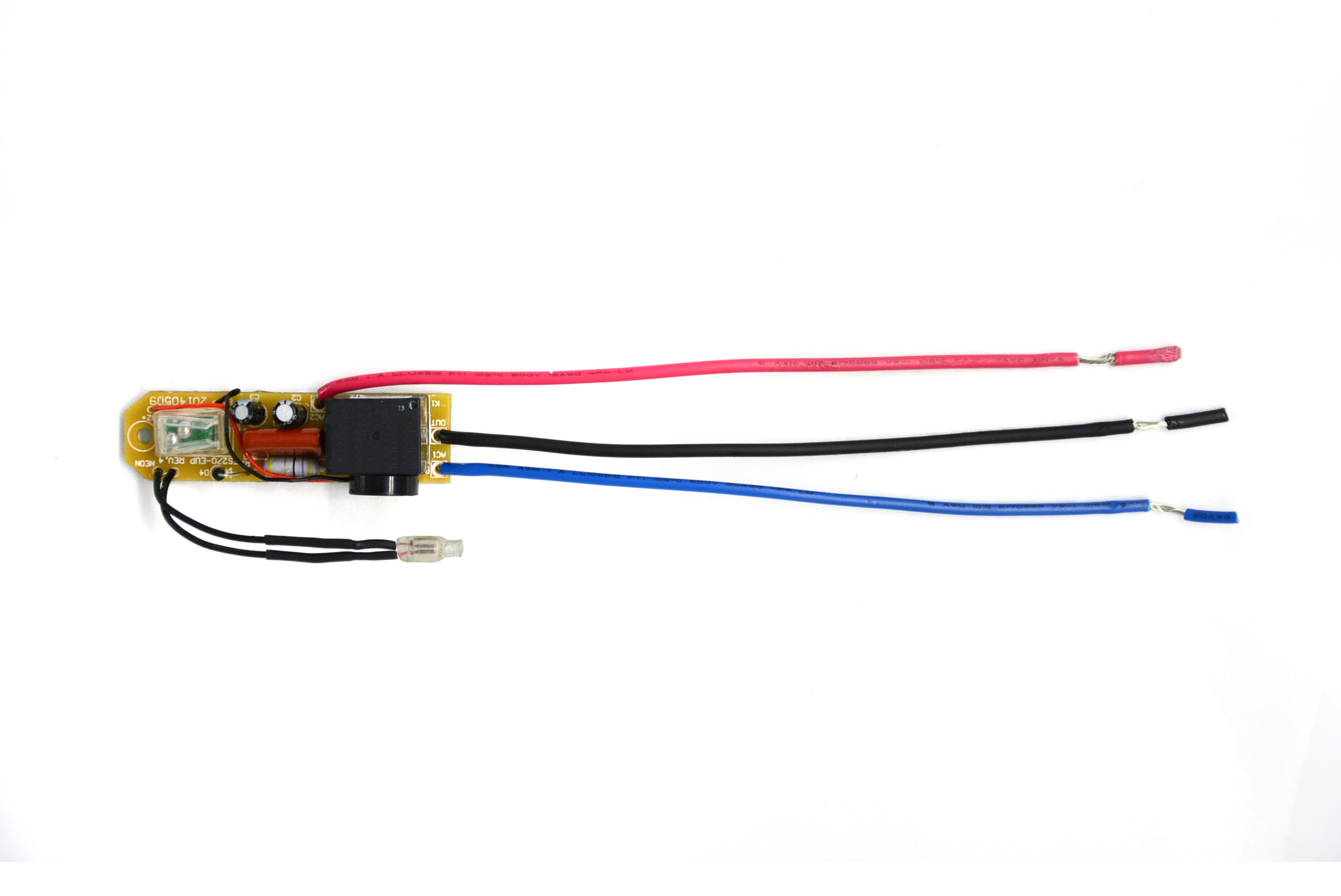

Product features: automatic power-off control of electric iron. The control board is installed on the handle. The time of automatic power-off, the indication mode and color of indicator light, and the alarm indication mode of buzzer can be adjusted according to actual needs.
Detail
Function Description:
Power supply: resistance capacitance step-down scheme
Display: neon lamp display (the timing lamp is always on, and the neon lamp flashes at 1Hz after automatic power failure)
Sound: after automatic power failure, the buzzer rings 6 times (1Hz frequency) and stops
Timing: put it horizontally for 30 seconds and vertically for 8 minutes, and power off automatically
Other technologies: standby power consumption < 0.5W
Technical parameters:
220VAC / 230VAC, 50 / 60Hz, the current passing through the bottom plate of the electric iron is less than 15A
