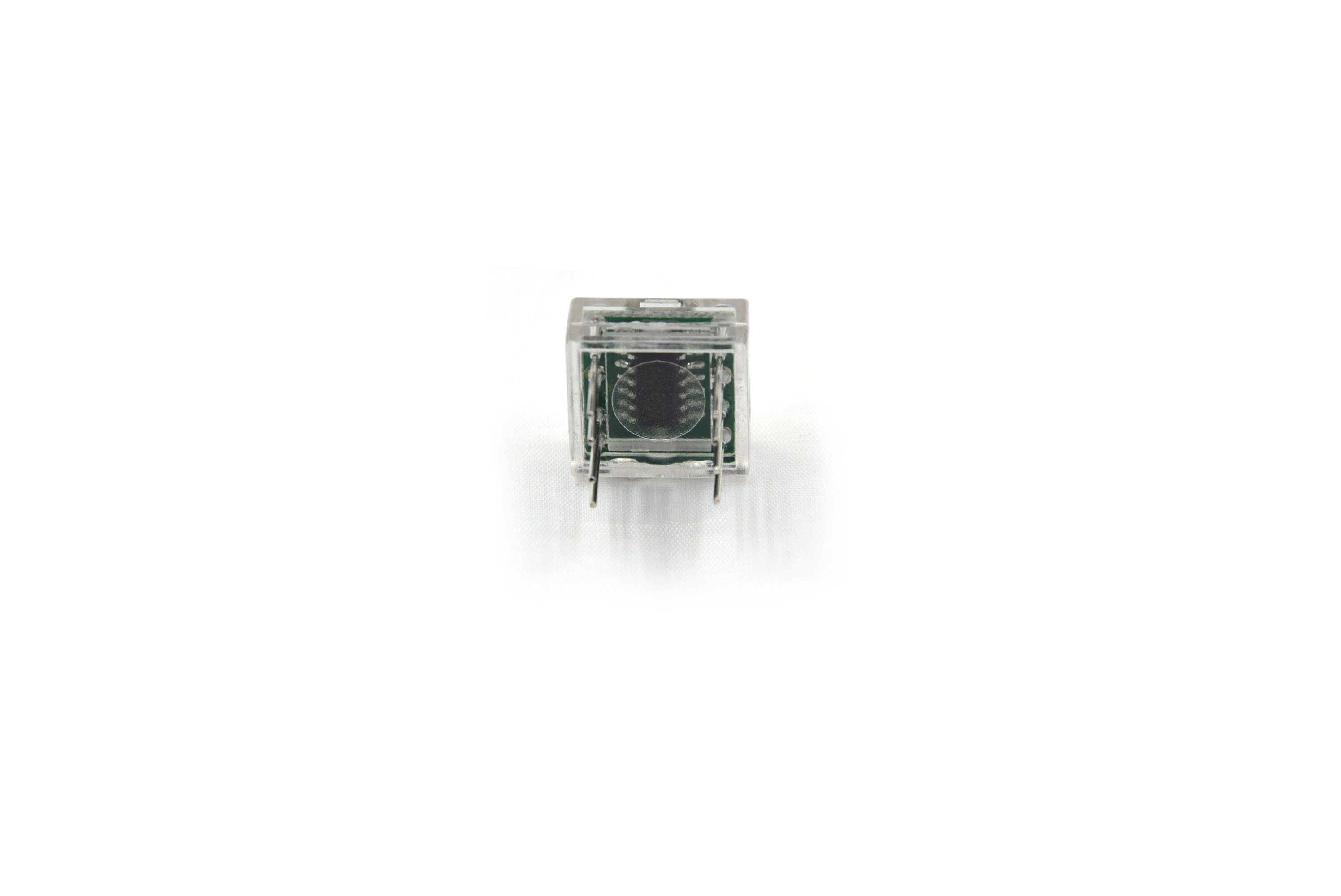

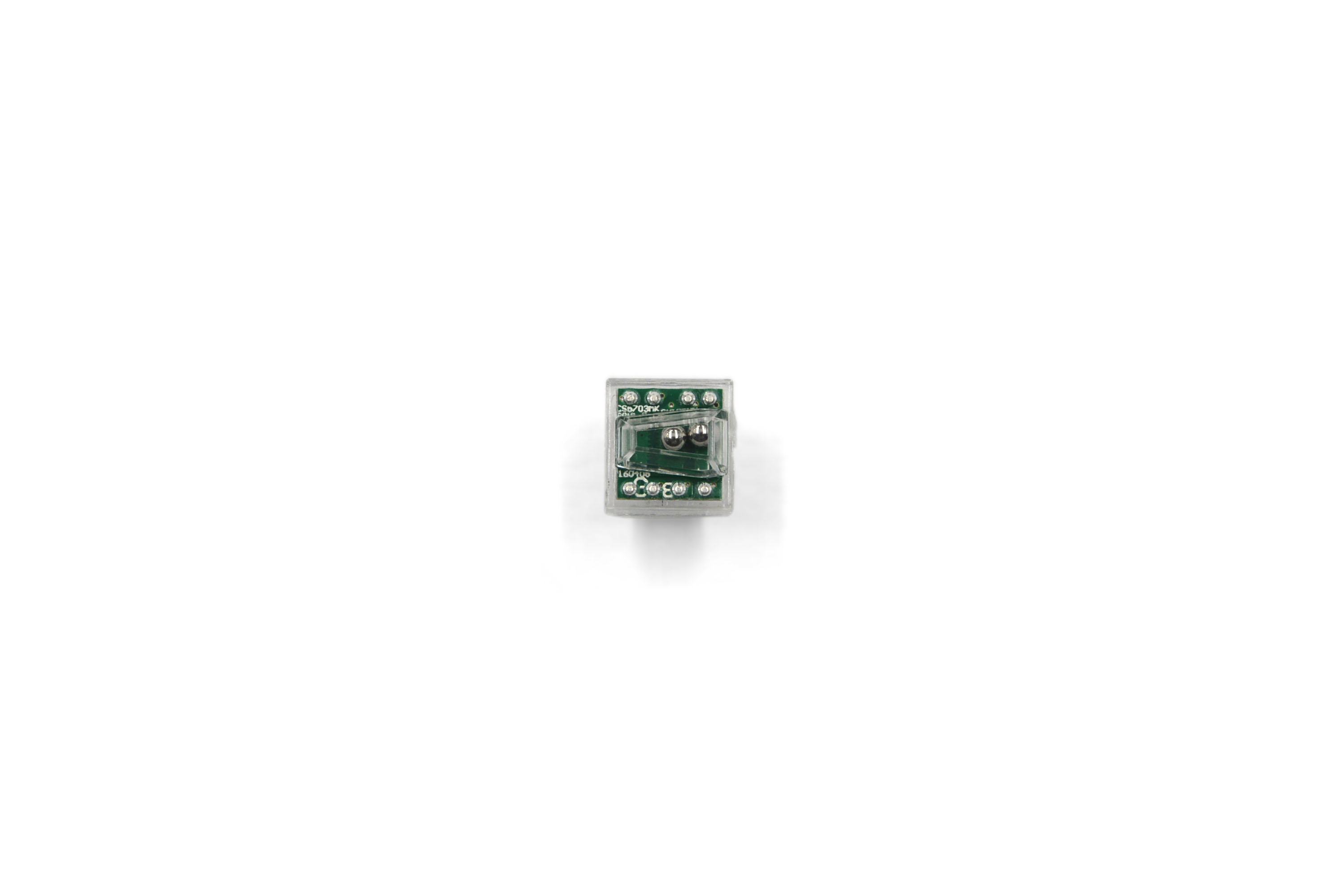

Timing control module for iron
Product features: 1. After power on, the drive relay is closed, the power is automatically cut off when it is placed horizontally or laterally for 30s, and automatically cut off when it is placed vertically for 8min (or 15min optional). Automatic reset after horizontal and vertical placement conversion. With power frequency detection function 2. Two LED drive pins can drive different LEDs to switch according to the thermostat signal 3. After automatic power-off, the buzzer rings 6 times 4. After automatic power-off, different LED ports can be ed for flashing indication 5. Special functions can be customized for customers.
Detail
Function Description:
The chip of this module integrates capacitive sensor to collect horizontal, vertical, side and motion states, with high sensitivity, strong anti-interference ability and high reliability. It can drive the relay automatically after the static horizontal, vertical and side placement reaches the set time
Power off, automatically reset the heating function after movement. Integrated high-frequency relay driving function, thermostat signal acquisition function, single and dual color LED driving function, power-off buzzer driving and ringing prompt, which can automatically adapt to different power supply frequencies,
High timing accuracy. And can adapt to the rapid testing requirements of the production and processing process. The overall module has high integration, can flexibly adapt to different display and timing requirements, small product volume, flexible and convenient design and use.
Technical parameters:
Module static working voltage: 2.4V ~ 6 VDC
Module static working current: 1mA
LED driving current: 10mA Max
Buzzer driving frequency: 4kHz automatic power-off and 6 beeps
Timing accuracy: take the mains frequency as the timing benchmark, and automatically adapt to 50 or 60Hz
EUP power consumption: according to the recommended circuit design, it can ensure that the EUP in working state and automatic power-off state can meet the standby requirements below 0.45w under 240V / 50Hz
Horizontal and vertical switching angle: 7 degrees
Dimension parameter: L15 5mm * W16mm * H11mm Max
Number of pin pins: 8pin
